6P+8P

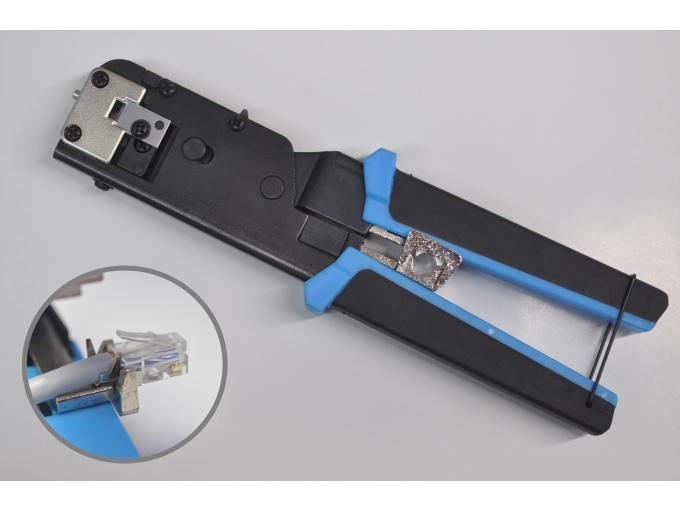

AS-4689 Internet/Telecom Modular Crimping, Cutting, Stripping Tool with Ground Tab Wing Function

Specification:

● Length: 200mm, Width:60mm(closed), Thickness:25mm.

● Weight: 385g

● Material:

  • Frame: Steel Finished: Black OxideHardness: HR15N@78-82
  • Cutting blade: SK-5, Hardness HRC60~66.
  • Crimper: Contact driver by MIM of Fe-8Ni 4605 , hardness @ HRC 36-42

● In-House test: Crimping depth matches US FCC standard.

Features:

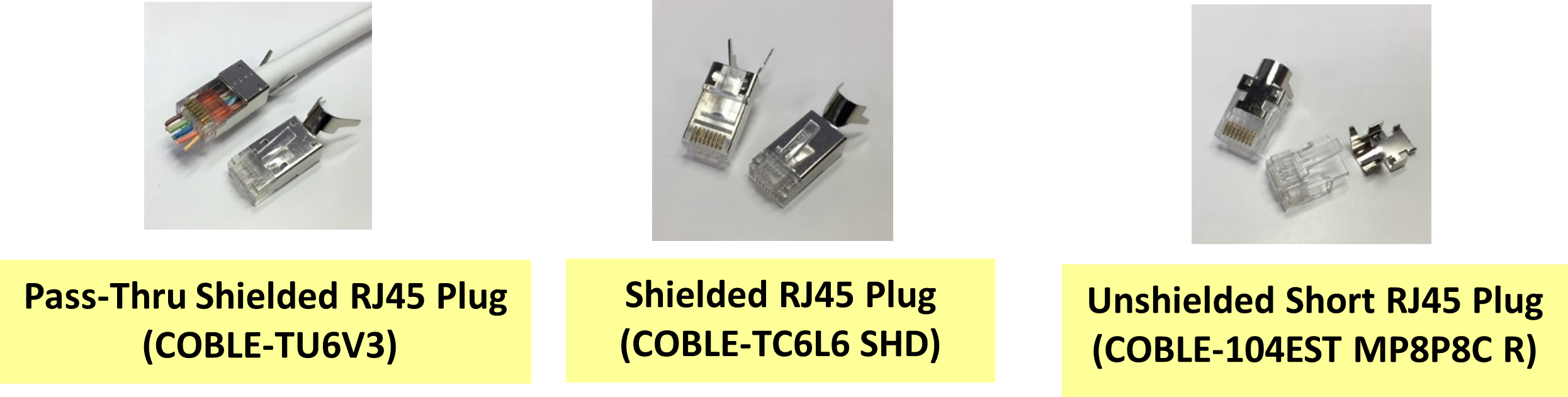

● Crimp for COBLE No.104EST MP8P8C R & TC6L6 SHD & TU6V3 with flat cable stripper and cable cutter.
 Customized handle grip color is available.
