6P+8P

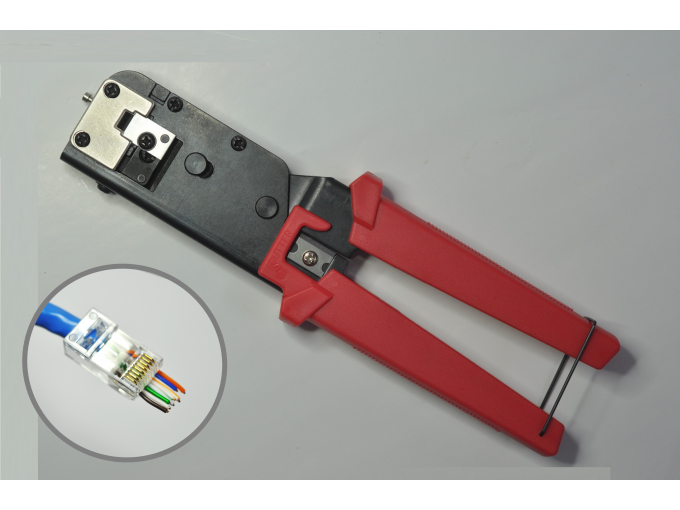

AS-4686 PASS-THRU RJ45 Internet/Telecom Modular Crimping, Cutting, Stripping Tool with Ratchet Function

Specification:

Length: 202mm, Width:60mm(closed), Thickness:22mm.

Weight: 352g

Material:

  • Frame: Steel Finished: Black OxideHardness: HR15N@78-82
  • Crimper: Contact driver by MIM of Fe-8Ni 4605 , hardness @ HRC 36-42
  • Cutting blade: SK-5, Hardness HRC60~66.
  • Connector stopper: Aluminum.

In-House test: Crimping depth matches US FCC standard.

Features:

Crimping for regular RJ45 and pass-thru RJ45 & regular RJ12/11. Suited with flat cable stripper and cable cutter.
Packing Terms:
40pcs/carton by
BOX
Net Weight: 15.2KGS
Gross Weight: 16.2KGS
CU.FT: 0.85'
OR
36pcs/carton by
Slide Blister
Net Weight: 14KGS
Gross Weight: 15.5KGS
CU.FT: 1.49'
