Indent Crimping Tool

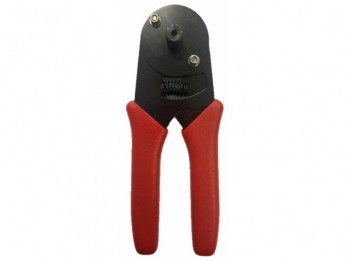

AS-1446 DEUTSCH Solid Contact Crimping Tool Size 20 with wire AWG 20/22

Specification:
Weight: 234g    Length: 164.4mm ,  width:65mm  ,  thickness:25.6mm
Material:

  • Body made by S50C Carbon Steel, hardness @ HRC45-48
  • Indenter made by FD-0405 steel, hardness @ HRC35-45
  • Work with DEUTSCH solid contact Size #20 with wire AWG 20/22
  • Comfortable cushioned grips.
  • Features ratchet mechanism to complete an effective crimp.
  • Customized handle grip color is available.
  • 4-way indent crimping.

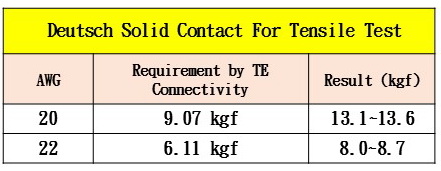

  • Inspection test (tensile test)

Packing Terms:
  • 60pcs/carton by box
  • Net Weight: 19.6KGS
  • Gross Weight: 20.6KGS
  • CU.FT: 1.05'
